Pandion

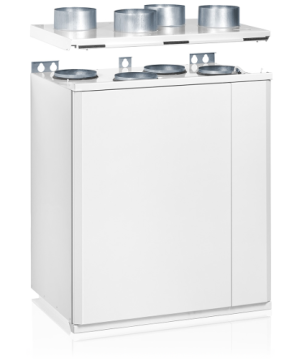

The Enervent Pandion unit is best suited for medium-sized detached houses or apartments. It is also well suited for public spaces, where a smallish air amount is required.

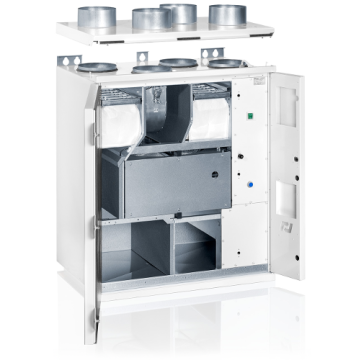

The internal pressure drop in the unit has been minimized, which means a smaller energy consumption and high heat recovery efficiency. Due to its design, the unit doesn’t freeze even during really cold temperatures. Pandion is equipped with high quality bag filters for fresh and healthy indoor air and low pressure drops.

Duct connections

The Pandion is available with a right-handed duct connection layout.

Control options

eAir
eAir
eWind
eWind
Fan speed settingsThrough operation modes4-step
Supply air temperature set point
Control of electrical after heater
Over pressure mode
Alarm and maintenance reminder
Humidity boosting
Possibility to connect two panels to one unit
Cooling recoveryAutomaticAutomatic
KNX connectivity
Commissioning parameters view
On-off control for CHG brine pump
On-off control for GWC damper motor
Control for CHG coil 3-way valve motor
Exercising of brine pumps during standby
Exercising of the HRW during standby
Modbus RTU
Modbus TCP/IP
Stepless control of heat recovery
Control of damper motors
Control of electrical pre-heater
Control of water pre-heater/cooler
Control of water heater
Eco mode
Control of water cooler
Boosting function
Measurements view
Carbon dioxide boosting
Time programs
Summer night cooling
Temperature boosting
Compensation for hood/central vacuum cleaner
Constant duct pressure mode
Internet user interface
Time extension mode
Setup wizard
 Show more features
 Show less features

This feature is always included

This feature is available with extra equipment

+/- 500 m³/hMeasured at 100 Pa with F7/M5 filters
224 m²

Datasheet

Ø
Ducts
Ø 160 mm
Width
785 mm
Height
895 mm
Depth
543 mm
Weight
90 kg
Install on wall, ceiling or floor

Models

Product number Unit
P07 209 0012 Pandion eAir E
P07 209 0013 Pandion eAir E-CG
P07 209 0016 Pandion eAir W
P07 209 0017 Pandion eAir W-CG
P07 219 0011 Pandion TCG-E
P07 219 0012 Pandion TCG-W
P07 301 0002 Pandion eWind E
P07 301 0003 Pandion eWind E-CG
P07 301 0006 Pandion eWind W
Pandion RL E
Pandion RL E-CG
Pandion RL W
Pandion RL W-CG
