Control

Indoor climate control is simple and fun

The best indoor ventilation system is one you do not notice. You will not need to pay attention to it at all. The system reacts automatically to changes in indoor and outdoor conditions, without you having to spare it a thought. The indoor conditions are constantly maintained at a comfortable, appropriate level.

Enervent has developed a range of different control systems. Choose the one that best meets the needs of your family.

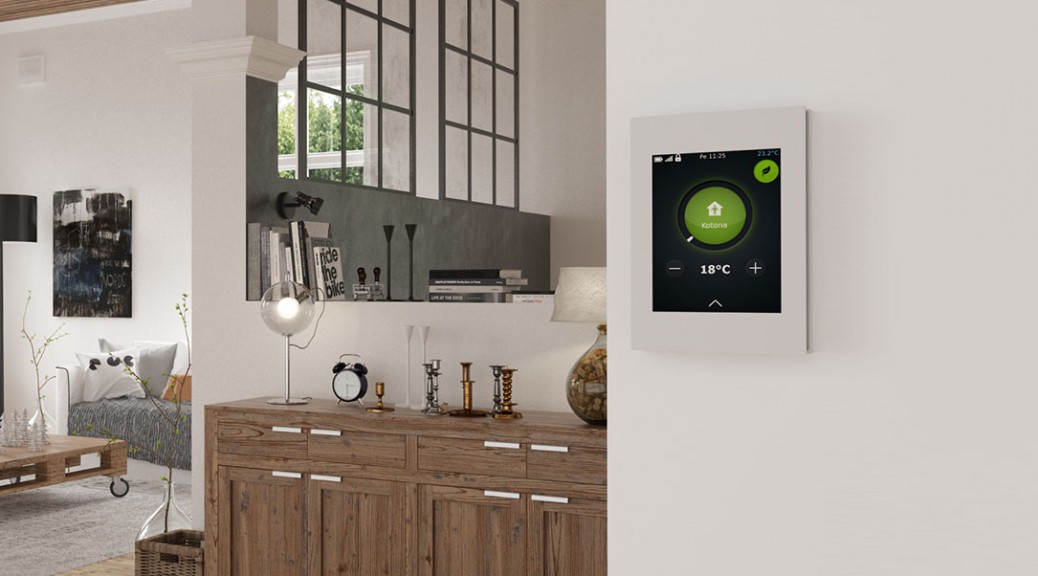

Enervent eAir – easy as breathing

The smart Enervent eAir system meets the needs of the most demanding indoor climate controller and is extremely easy to use. Ventilation is controlled through a visually clear touch screen through pre-set scenarios like Home and Away. The Home and Away functions are the ones you will need most often. Other functions are the Eco and Silent scenarios which reduce energy consumption and decrease operating noise.

The system displays either daily or weekly measurement data. The trend graphs are also easy to export into Excel. The controller is equipped with a versatile timing function for programming the scenarios according to your schedule. The device can be timed at weekly and annual levels. You can also control your home’s ventilation remotely through the internet. The free eAir web interface is included in the delivery.

Try the eAir Web interface!
Serial number: 2014000901
PIN: tr5y8

Enervent eWind – a versatile but reasonably-priced control

Enervent has introduced a new, easy-to-use, and moderately priced control for its ventilation units. The control is controlled and adjusted via the stylish and intuitive eWind control panel.

The new eWind control is available for all Enervent ventilation units, apart from the biggest Pallas machines.

eWind is an extremely versatile solution which can control and adjust the indoor climate in a number of ways. Humidity boosting is a built-in feature. The control also controls heating and cooling solutions of the Enervent ventilation systems, such as fluid-based heating and cooling coils for a ground circuit.

The Enervent eWind control can also be connected to open building automation. The system can be equipped with KNX and Modbus RTU bus control as an option.

Enervent ECC – more flexible everyday living

ecc-ohjainpaneeli2
ECC control is the basic control system designed for Enervent ventilation units. The system makes the basic control of your indoor climate easy and practical.

The ECC control panel is clear, simple and easy to understand. Fan power can be adjusted on a four-step scale; you can switch heat recovery on and off and adjust electrical after-heating on a four-step scale. The panel is also equipped with an indicator light for malfunctions and service requirements. It is as simple as that.

Comparison table

eAir
eAir
eWind
eWind
Fan speed settingsThrough operation modes4-step
Supply air temperature set point
Control of electrical after heater
Over pressure mode
Alarm and maintenance reminder
Humidity boosting
Possibility to connect two panels to one unit
Cooling recoveryAutomaticAutomatic
KNX connectivity
Commissioning parameters view
On-off control for CHG brine pump
On-off control for GWC damper motor
Control for CHG coil 3-way valve motor
Exercising of brine pumps during standby
Exercising of the HRW during standby
Modbus RTU
Modbus TCP/IP
Stepless control of heat recovery
Control of damper motors
Control of electrical pre-heater
Control of water pre-heater/cooler
Control of water heater
Eco mode
Control of water cooler
Boosting function
Measurements view
Carbon dioxide boosting
Time programs
Summer night cooling
Temperature boosting
Compensation for hood/central vacuum cleaner
Constant duct pressure mode
Internet user interface
Time extension mode
Setup wizard

This feature is always included

This feature is available with extra equipment
