Pegasos

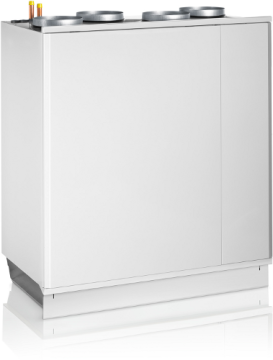

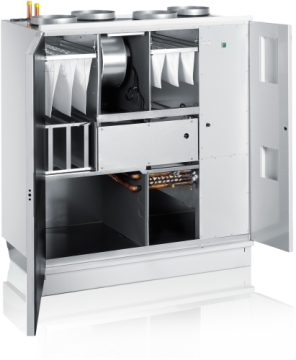

The Enervent Pegasos unit is best suited for large detached houses and public spaces, such as schools and kinder gardens. All heating and cooling coils are built-in to the unit.

Enervent Pegasos is a ‘non-residential ventilation unit’ (NRVU) according to the EU Commission Regulation No 1253/2014. Ventilation units with maximum flow rate over 250 m³/h which the manufacturer has not declared intended as being exclusively for a residential ventilation application are called non-residential. Non-residential ventilation units (NRVUs) are excluded from EcoDesign labelling.

Our calculation software Energy Optimizer, reports whether the chosen NRVU unit fulfills the EcoDesign requirements or not for the intended project.

Duct connections

The Pegasos is available only with a right-handed duct connection layout.

Control options

eAir
eAir
eWind
eWind
Fan speed settingsThrough operation modes4-step
Supply air temperature set point
Control of electrical after heater
Over pressure mode
Alarm and maintenance reminder
Humidity boosting
Possibility to connect two panels to one unit
Cooling recoveryAutomaticAutomatic
KNX connectivity
Commissioning parameters view
On-off control for CHG brine pump
On-off control for GWC damper motor
Control for CHG coil 3-way valve motor
Exercising of brine pumps during standby
Exercising of the HRW during standby
Modbus RTU
Modbus TCP/IP
Stepless control of heat recovery
Control of damper motors
Control of electrical pre-heater
Control of water pre-heater/cooler
Control of water heater
Eco mode
Control of water cooler
Boosting function
Measurements view
Carbon dioxide boosting
Time programs
Summer night cooling
Temperature boosting
Compensation for hood/central vacuum cleaner
Constant duct pressure mode
Internet user interface
Time extension mode
Setup wizard
 Show more features
 Show less features

This feature is always included

This feature is available with extra equipment

-1080 / +1062 m³/h
531 m²

Datasheet

Ø
Ducts
Ø 250 mm
Width
1250 mm
Height
1400 mm
Depth
677 mm
Weight
203 kg
Install on floor

Models

Product number Unit
P06 211 0002 Pegasos eAir E
P06 211 0003 Pegasos eAir E-CG
P06 211 0006 Pegasos eAir W
P06 211 0008 Pegasos eAir CG-W
P06 211 0007 Pegasos eAir W-CG
P06 301 0002 Pegasos eWind E
P06 301 0003 Pegasos eWind E-CG
P06 301 0006 Pegasos eWind W
