Piccolo ON
Piccolo ON

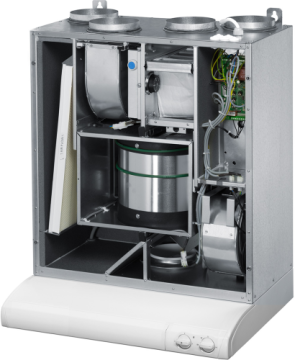

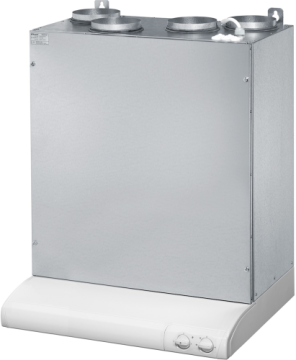

The Piccolo unit is designed to be mounted above the stove in flats and apartments. The unit is equipped with a control that regulates the fan speeds, the rotating heat exchanger and the after heater. Desired fan speed is chosen on the cooker hood or on a separate operating panel. The unit is also equipped with automatic defrosting of the rotating heat exchanger and a possibility to connect a condense drain. The air from the cooker hood is lead past the heat exchanger. Therefore we recommend that a separate extract air vent be installed in the kitchen so heat recovery can be acquired.
Duct connections
The Piccolo ON is available in both left-handed and right-handed duct connection layouts.
Control options
 EC | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fan speed settings | 4-step | ||||||||
| Supply air temperature set point | |||||||||
| Control of electrical after heater | |||||||||
| Over pressure mode | |||||||||
| Alarm and maintenance reminder | |||||||||
| Humidity boosting | |||||||||
| Possibility to connect two panels to one unit | |||||||||
| Cooling recovery | Manual | ||||||||
| Show more features | |||||||||
| Show less features | |||||||||
This feature is always included
This feature is available with extra equipment
Datasheet
Ø
Ducts
Ø 125 mm
Width
598 mm
Height
630 mm
Depth
320 mm
Weight
46 kg
Install in kitchen above stove, ceiling or wall
Ecodesign
Models
| Product number | Unit |
|---|---|
| P09 001 0012 | Piccolo ON eco ECE right |
| P09 001 0012V | Piccolo ON eco ECE left |
