Pingvin

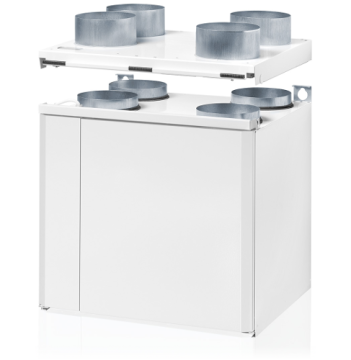

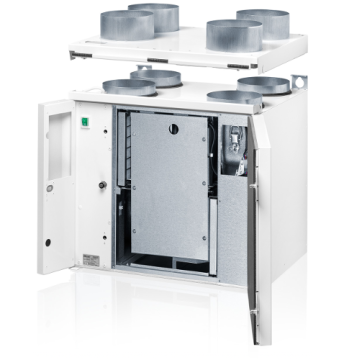

The Enervent Pingvin unit is best suited for small detached houses or terraced houses.

The first generation of Pingvin units was introduced as early as 1995. Since then, countless improvements have been made to the product family, i.e. the fans have been updated to energy efficient direct current fans and the control systems have been developed significantly. In Finland, Pingvin is the bestselling ventilation unit with a rotating heat exchanger intended for single-family houses. The unit is compact. The small space contains an amazing amount
of cutting edge technology.

Duct connections

The Pingvin is available in both left-handed and right-handed duct connection layouts.

Control options

eAir
eAir
eWind
eWind
EC
EC
Fan speed settingsThrough operation modes4-step4-step
Supply air temperature set point
Control of electrical after heater
Over pressure mode
Alarm and maintenance reminder
Humidity boosting
Possibility to connect two panels to one unit
Cooling recoveryAutomaticAutomaticManual
KNX connectivity
Commissioning parameters view
On-off control for CHG brine pump
On-off control for GWC damper motor
Control for CHG coil 3-way valve motor
Exercising of brine pumps during standby
Exercising of the HRW during standby
Modbus RTU
Modbus TCP/IP
Stepless control of heat recovery
Control of damper motors
Control of electrical pre-heater
Control of water pre-heater/cooler
Control of water heater
Eco mode
Control of water cooler
Boosting function
Measurements view
Carbon dioxide boosting
Time programs
Summer night cooling
Temperature boosting
Compensation for hood/central vacuum cleaner
Constant duct pressure mode
Internet user interface
Time extension mode
Setup wizard
 Show more features
 Show less features

This feature is always included

This feature is available with extra equipment

-288 / +270 m³/h
96 m²

Datasheet

Ø
Ducts
Ø 160 mm
Width
580 mm
Height
537 mm
Depth
500 mm
Weight
50 kg
Install on wall or ceiling

Models

Product number Unit
P01 011 0032 Pingvin eco ECE right
P01 011 0032V Pingvin eco ECE left
P01 211 0002 Pingvin eAir E right
P01 211 0002V Pingvin eAir E left
P01 211 0006 Pingvin eAir W right
P01 211 0006V Pingvin eAir W left
P01 301 0002 Pingvin eWind E right
P01 301 0002V Pingvin eWind E left
P01 301 0006 Pingvin eWind W right
P01 301 0006V Pingvin eWind W left
