LTR-5 Z

The Enervent LTR-5 Z is suitable for single-family homes, terraced houses and commercial premises.

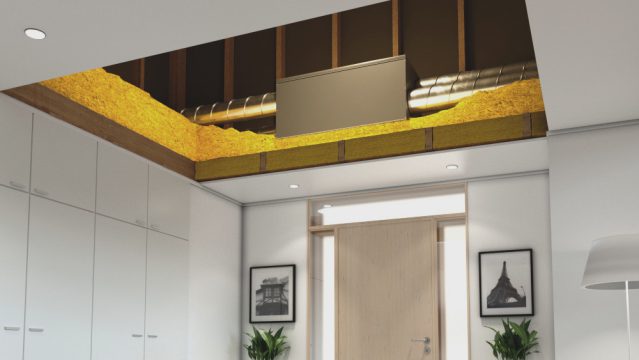

The LTR series units can be installed on roofs, attics, ceilings or technical rooms. Horizontal installation often saves a lot of space. The LTR series machines are well-insulated and can be installed in cold places. The ventilation unit requires additional insulation if the ambient temperature drops below -10 °C.

The simple, yet ingenious, design of the air handling unit and the low pressure drop ensure low cost, safety and extremely low sound levels.

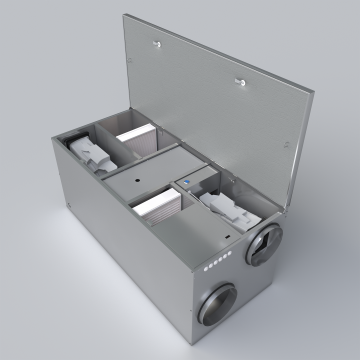

The LTR-5 Z’s hatch can be used as a hinged or detachable hatch. The swing cover is interchangeable to meet the requirements of the installation site.

Duct connections

The LTR-5 Z is available with a right-handed duct connection layout.

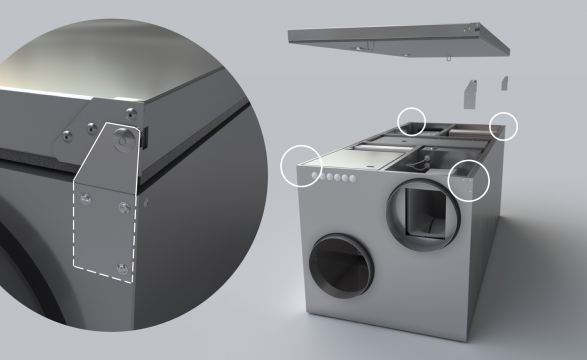

The LTR-5 Z unit can be installed either with the hatch upwards or to the side. When installing the unit with the hatch to the side, it can be placed on either side. The hatch can be used hinged or can be lifted off the unit during maintenance. It is not allowed to install the unit with the hatch downwards or standing upright with the duct connections vertically.

Control options

eAir
eAir
eWind
eWind
Fan speed settingsThrough operation modes4-step
Supply air temperature set point
Control of electrical after heater
Over pressure mode
Alarm and maintenance reminder
Humidity boosting
Possibility to connect two panels to one unit
Cooling recoveryAutomaticAutomatic
KNX connectivity
Commissioning parameters view
On-off control for CHG brine pump
On-off control for GWC damper motor
Control for CHG coil 3-way valve motor
Exercising of brine pumps during standby
Exercising of the HRW during standby
Modbus RTU
Modbus TCP/IP
Stepless control of heat recovery
Control of damper motors
Control of electrical pre-heater
Control of water pre-heater/cooler
Control of water heater
Eco mode
Control of water cooler
Boosting function
Measurements view
Carbon dioxide boosting
Time programs
Summer night cooling
Temperature boosting
Compensation for hood/central vacuum cleaner
Constant duct pressure mode
Internet user interface
Time extension mode
Setup wizard
 Show more features
 Show less features

This feature is always included

This feature is available with extra equipment

+/- 680 m³/hMeasured at 100 Pa with F7/M5 filters
336 m²

Datasheet

Ø
Ducts
Ø 200 mm
Width
1160 mm
Height
528 mm
Depth
523 mm
Weight
68 kg
Can also be installed in a cold space with extra insulation

Models

Product number Unit
P19 201 0002 LTR-5 Z eAir E
P19 201 0003 LTR-5 Z eAir E-CG
P19 201 0006 LTR-5 Z eAir W
P19 201 0007 LTR-5 Z eAir W-CG
P19 301 0002 LTR-5 Z eWind E
P19 301 0003 LTR-5 Z eWind E-CG
P19 301 0006 LTR-5 Z eWind W
LTR-5 Z RL E
LTR-5 Z RL E-CG
LTR-5 Z RL W
LTR-5 Z RL W-CG
