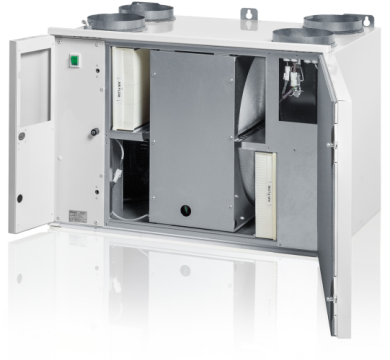

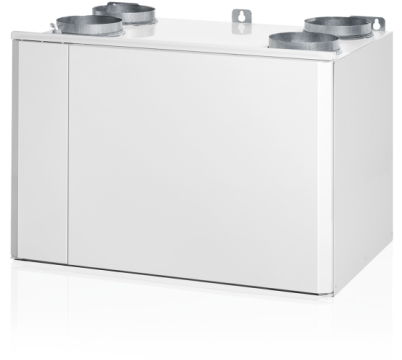

Pingvin XL

The Enervent Pingvin XL unit is best suited for medium-sized detached houses or apartments. It is also well suited for public spaces, where a smallish air amount is required.

The unit is low in comparison with its capacity, which enables installation in tight spaces, i.e. over the hot water tank in the technical space.



Duct connections

The Pingvin XL is available in both left-handed and right-handed duct connection layouts.

Control options

eAir
eAir
eWind
eWind
Fan speed settingsThrough operation modes4-step
Supply air temperature set point
Control of electrical after heater
Over pressure mode
Alarm and maintenance reminder
Humidity boosting
Possibility to connect two panels to one unit
Cooling recoveryAutomaticAutomatic
KNX connectivity
Commissioning parameters view
On-off control for CHG brine pump
On-off control for GWC damper motor
Control for CHG coil 3-way valve motor
Exercising of brine pumps during standby
Exercising of the HRW during standby
Modbus RTU
Modbus TCP/IP
Stepless control of heat recovery
Control of damper motors
Control of electrical pre-heater
Control of water pre-heater/cooler
Control of water heater
Eco mode
Control of water cooler
Boosting function
Measurements view
Carbon dioxide boosting
Time programs
Summer night cooling
Temperature boosting
Compensation for hood/central vacuum cleaner
Constant duct pressure mode
Internet user interface
Time extension mode
Setup wizard
 Show more features
 Show less features

This feature is always included

This feature is available with extra equipment

+/- 520 m³/hMeasured at 100 Pa with F7/M5 filters
233 m²

Datasheet

Ø
Ducts
Ø 160 mm
Width
780 mm
Height
540 mm
Depth
555 mm
Weight
63 kg
Install on wall or ceiling

Models

Product number Unit
P10 203 0002 Pingvin XL eAir E right
P10 203 0002V Pingvin XL eAir E left
P10 203 0003 Pingvin XL eAir E-CG right
P10 203 0003V Pingvin XL eAir E-CG left
P10 203 0006 Pingvin XL eAir W right
P10 203 0006V Pingvin XL eAir W left
P10 301 0002 Pingvin XL eWind E right
P10 301 0002V Pingvin XL eWind E left
P10 301 0003 Pingvin XL eWind E-CG right
P10 301 0003V Pingvin XL eWind E-CG left
P10 301 0006 Pingvin XL eWind W right
P10 301 0006V Pingvin XL eWind W left
