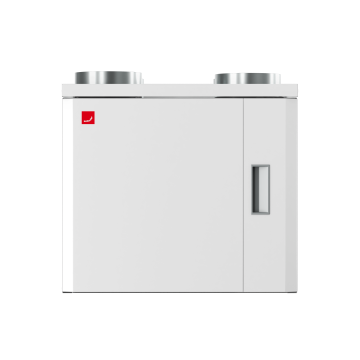

Salla Compact – More Performance in a Compact Size
Enervent Zehnder now introduces Salla Compact – a new and updated version of the popular Salla ventilation unit.

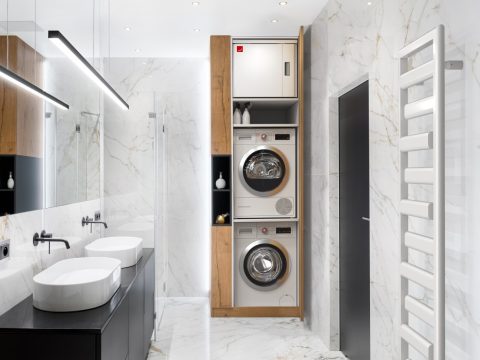

Salla Compact is designed and manufactured in Finland for demanding Nordic conditions; it delivers high performance in places where many other units simply don’t fit. Only 48 cm high, Salla Compact is ideal for installations in tight spaces – for example above a washing machine or tumble dryer, or in small technical rooms.
Despite its compact size, it offers efficient heat recovery, low energy consumption, and quiet operation, ensuring a comfortable indoor climate all year round. The unit provides an airflow of ±360 m³/h (100 Pa) and features duct connections of Ø160 mm and Ø125 mm. Its durable construction and reliable components guarantee a long service life and worry-free operation, even in challenging environments.
Installation is now easier and faster than ever. A key feature of the Salla Compact ventilation unit is the mounting kit, which is always required. The kit includes a mounting plate, that also functions as the unit’s top cover. The kit also includes wall mounting plates. The unit offers flexible connection options for cooker hoods and is designed for quick commissioning. The ventilation unit can be equipped with a water trap. The water trap is an optional accessory that must be ordered separately. With the correct ceiling mounting plate, the ventilation unit can easily be connected to the cooker hood connection. Explore our range of cooker hoods here.
Salla Compact is designed for modern homes and for users who value simple control and high comfort. The unit can be operated via the iSLa app or the eWind control panel, offering full control of the ventilation – wherever you are. The quiet operation ensures a pleasant indoor climate all year round, and the intelligent heat recovery system maximizes energy efficiency both in summer and winter.
A complete order consists of a ventilation unit, a mounting kit and a control panel.
Duct connections
Control options
 eWind | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fan speed settings | 4-step | ||||||||
| Supply air temperature set point | |||||||||
| Control of electrical after heater | |||||||||
| Over pressure mode | |||||||||
| Alarm and maintenance reminder | |||||||||
| Humidity boosting | |||||||||
| Possibility to connect two panels to one unit | |||||||||
| Cooling recovery | Automatic | ||||||||
| KNX connectivity | |||||||||
| Commissioning parameters view | |||||||||
| On-off control for CHG brine pump | |||||||||
| On-off control for GWC damper motor | |||||||||
| Control for CHG coil 3-way valve motor | |||||||||
| Exercising of brine pumps during standby | |||||||||
| Exercising of the HRW during standby | |||||||||
| Modbus RTU | |||||||||
| Stepless control of heat recovery | |||||||||
| Control of damper motors | |||||||||
| Control of electrical pre-heater | |||||||||
| Control of water pre-heater/cooler | |||||||||
| Control of water heater | |||||||||
| Eco mode | |||||||||
| Control of water cooler | |||||||||
| Boosting function | |||||||||
| Measurements view | |||||||||
| Carbon dioxide boosting | |||||||||
| Compensation for hood/central vacuum cleaner | |||||||||
| Show more features | |||||||||
| Show less features | |||||||||
This feature is always included
This feature is available with extra equipment
Datasheet
Models and accessories
| Product number | Unit |
|---|---|
| 471012304 | Salla Compact eWind E right |
| 471011271 | Salla Compact eWind E left |
| Salla Compact CHC eWind E right | |
| Salla Compact CHC eWind E left | |
| 471010396 | Mounting kit Compact right |
| 471012529 | Mounting kit Compact left |
| 471010988 | Mounting kit CHC Compact right |
| 471011001 | Mounting kit CHC Compact left |
| 471011045 | Control panel eWind |
| 471010997 | Built-in water trap |
